Biomass Processing and Pelleting: Preparing Agricultural Waste for Industrial Fuel Use

Agricultural and plant-based residues are produced in large quantities across farming, food processing, forestry and other industries.

Rice husk, sawdust, wood chips, crop residues, bagasse and similar materials can have useful energy value. However, loose biomass can be difficult to store, transport and feed consistently into industrial systems.

This is where biomass processing and pelleting become important.

A biomass processing plant prepares raw material by reducing its size, controlling moisture, removing unwanted material and converting suitable biomass into a more consistent form such as pellets.

What Is Biomass Processing?

{“success”:false,”data”:”The uploaded file exceeds the upload_max_filesize directive in php.ini.”} refers to the preparation of organic material before it is used as fuel or as an input for another industrial application.

Raw biomass varies considerably depending on its source.

For example, sawdust behaves differently from crop stalks. Rice husk has different physical characteristics compared with wood chips. Some materials arrive relatively dry, while others contain higher moisture levels.

Because of these differences, biomass generally requires preparation before pelleting.

Typical processing stages can include:

• Chipping
• Shredding
• Grinding
• Screening
• Drying
• Mixing
• Pelletizing
• Cooling
• Storage

The actual process depends on the material being handled and the required final product.

Why Loose Biomass Can Be Difficult to Handle

Many biomass materials have relatively low bulk density.

This means a large volume of material may need to be stored or transported even when its actual weight is comparatively low.

Irregular particle size can create another challenge.

Long fibres, oversized wood pieces, crop stalks and mixed residues may not move evenly through feeding or processing equipment.

Loose biomass can also create handling and storage difficulties where large quantities are involved.

Pelletization helps create a more uniform and compact fuel format.

Size Reduction Comes First

Raw biomass often arrives in sizes that are unsuitable for direct pellet production.

Wood residues may need chipping.

Agricultural residues may require shredding.

Smaller material may need grinding before it reaches the pellet mill.

The purpose of size reduction is to prepare a more consistent feed material.

When particle sizes are better controlled, subsequent processing stages such as drying, mixing and pelletizing can operate more effectively.

The required size reduction equipment depends on the type of biomass.

A processing line handling wood chips may therefore differ from one designed for crop residues or fine sawdust.

Screening Helps Remove Unwanted Material

Biomass feedstock can contain oversized material, fines and unwanted contaminants.

Screening separates material according to size before it moves further through the processing line.

This can help prevent unsuitable material from reaching equipment that requires a controlled feed.

Screening also allows operators to recirculate oversized material for additional size reduction where necessary.

For large-scale biomass pellet production, this type of material control can make the overall process easier to manage.

Moisture Is Important in Pellet Production

Moisture content is another major factor in biomass pelletization.

Material that is too wet can create processing difficulties and affect pellet formation. Feedstock that is excessively dry may also require adjustment depending on its characteristics and the pelleting process.

Drying systems can therefore become an important part of a biomass processing line.

The required moisture level depends on the biomass type, equipment and desired pellet specification.

Rather than using one fixed processing condition for every material, plants need to evaluate the actual feedstock being supplied.

How Biomass Pellets Are Produced

After the biomass reaches the required size and moisture condition, it can move towards pelletizing.

Inside a pellet mill, prepared biomass is compressed through a die to create pellets with a controlled shape and size.

The pellets leaving the mill may still contain heat generated during the compression process.

Cooling therefore follows pelletization in many processing lines.

Once cooled, pellets can be handled, stored and transported for their intended application.

Why Pelletizing Biomass Makes Sense

One of the main benefits of biomass pelletization is easier material handling.

Compared with loose agricultural or wood waste, pellets provide a denser and more consistent fuel format.

This can support:

Storage efficiency: More material can be stored within a given space compared with many loose biomass forms.

Transportation: Higher bulk density can improve the practical movement of biomass over longer distances.

Material handling: Uniform pellets are easier to convey and meter through automated systems.

Fuel feeding: Consistent size can support more controlled feeding into suitable industrial combustion systems.

Utilisation of residues: Agricultural and processing residues can find an additional productive use where they meet the required fuel specifications.

Biomass Pellets for Industrial Applications

Biomass pellets can be considered for a range of industrial thermal applications depending on fuel specifications, equipment compatibility and local requirements.

Potential users may include:

• Industrial boilers
• Process heating facilities
• Selected cement industry applications
• Biomass energy plants
• Other thermal energy systems designed to handle biomass fuels

Before changing fuel, industrial users need to evaluate factors such as calorific value, ash content, moisture, feeding behaviour and compatibility with their combustion system.

Pellet quality therefore remains important.

Raw Material Determines Plant Design

There is no universal biomass processing line that suits every feedstock.

Several questions should be answered before selecting equipment:

• What type of biomass will be processed?
• What is the incoming particle size?
• How much moisture does it contain?
• Are stones, metals or other contaminants present?
• What processing capacity is required?
• What pellet size is expected?
• How will finished pellets be stored?
• Where will the pellets ultimately be used?

These inputs determine which processing stages are necessary.

For example, a facility handling large woody material may require substantial chipping and grinding capacity. A plant receiving fine sawdust may require less size reduction but greater attention to moisture control and material handling.

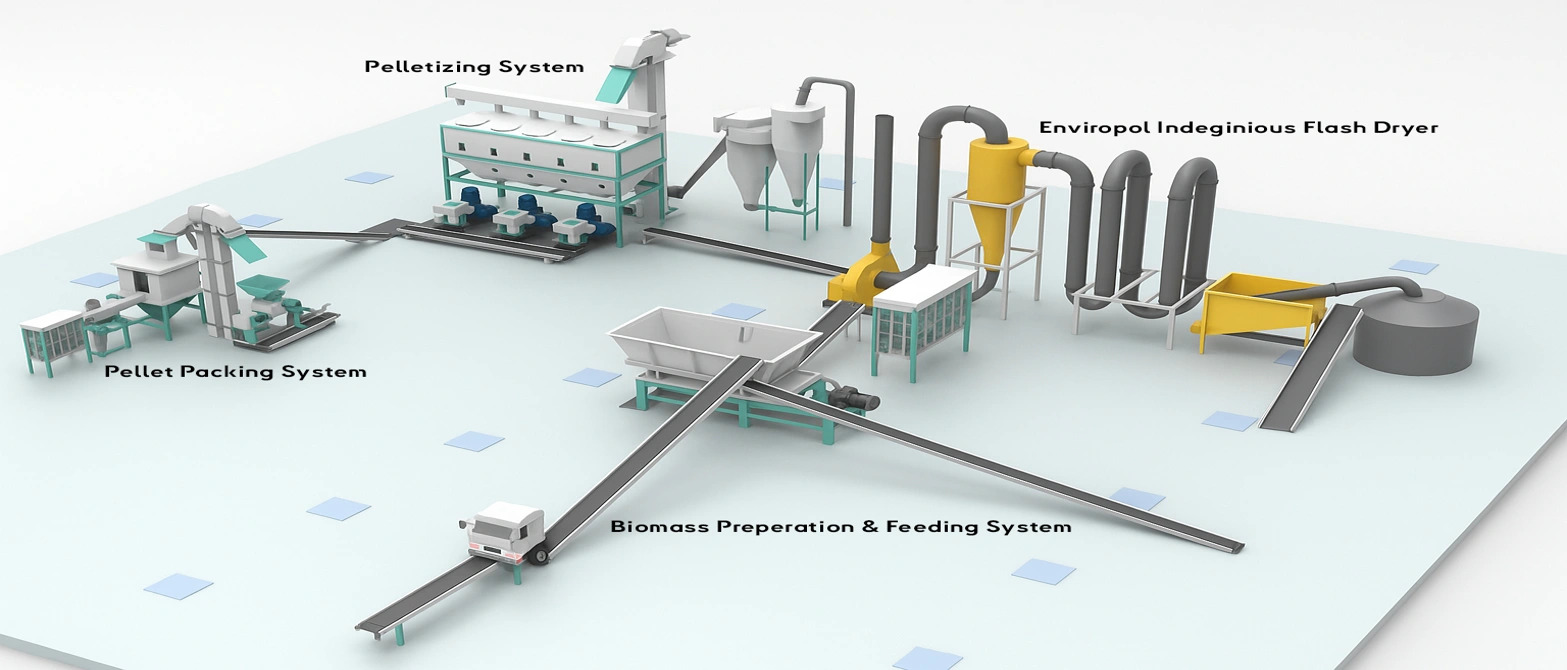

Building a Complete Biomass Pelleting Line

A commercial biomass plant involves more than installing a pellet mill.

The machines before and after the pellet mill also influence how effectively the overall system operates.

Material receiving, conveyors, shredders, grinders, screens, dryers, pellet mills, coolers and storage systems need to work as one processing line.

Businesses evaluating biomass and RDF pelleting solutions can explore Arcler Projects’ approach to biomass processing plants covering multiple preparation and pelleting stages.

Selecting the plant configuration according to the actual feedstock is important for reliable long-term operation.

Biomass Processing Supports Better Use of Residues

Agricultural and industrial biomass residues can become useful energy feedstock when they are collected and processed appropriately.

Pelletization offers a practical way to improve density, consistency and handling characteristics.

However, pellet quality begins much earlier than the pellet mill itself.

Proper size reduction, screening, moisture management and feed preparation all influence the material entering the final pelletization stage.

Conclusion

Biomass has strong potential as an industrial energy resource, but raw biomass often requires considerable preparation before it becomes a practical fuel.

Chipping and shredding reduce oversized material. Grinding creates a more suitable feed size. Screening improves material consistency. Drying helps manage moisture. Pelletization then produces a compact fuel that is easier to store, transport and handle.

For businesses planning a biomass pellet plant, understanding the feedstock should therefore be the first step before selecting the processing equipment.
